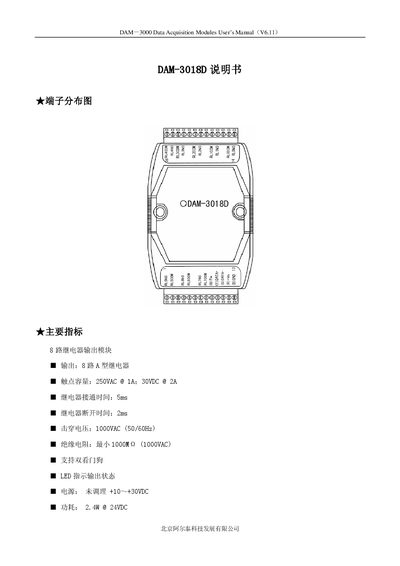

DAM-3018D User's Manual, introduces the module's terminal distribution, main indicators, structure diagram, code configuration table and other information
The DAM-3018D is an 8‑channel relay output data acquisition module designed for industrial monitoring and control applications. It features A‑type relays, LED status indicators, and support for dual watchdog timers.
Key specifications include a power supply range of +10 V to +30 V DC, a power consumption of 2.4 W at 24 V DC, and relay contact ratings of 250 VAC @ 1 A and 30 VDC @ 2 A. The manual also provides terminal diagrams, block diagrams, and configuration tables for baud‑rate settings. This manual is written in Chinese.
| Relay output channels | 8 |
|---|---|
| Relay type | A‑type |
| Contact rating | 250VAC @ 1A, 30VDC @ 2A |
| Relay contact closure time | 5 ms |
| Relay release time | 2 ms |
| Breakdown voltage | 1000 VAC (50/60 Hz) |
| Insulation resistance | ≥ 1000 MΩ (1000 VAC) |
| Power supply range | +10 V to +30 V DC |
| Power consumption | 2.4 W @ 24 V DC |
| Watchdog support | Dual watchdog |
The DAM-3018D provides eight relay output channels.
It operates from +10 V to +30 V DC.
Each relay is rated for 250 VAC at 1 A and 30 VDC at 2 A.
The module consumes 2.4 W when powered at 24 V DC.
