The DAM-E3000 Data Acquisition Modules User's Manual introduces the features and characteristics of the product, including an 8-channel relay output module, support for 10/100Mbps Ethernet, provision of default or customizable web pages, support for dual watchdog, etc.

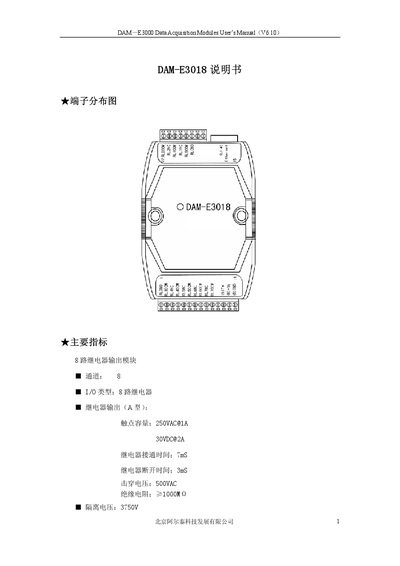

The DAM‑E3018 is an 8‑channel relay output data acquisition module designed for industrial automation. The manual provides a terminal diagram, wiring instructions, and the full set of MODBUS TCP commands needed for integration.
Key sections cover the module’s electrical specifications, communication protocol details, address mapping tables, and error‑response handling, enabling technicians and engineers to configure and troubleshoot the device efficiently. This manual is written in Chinese.
| I/O Type | 8 relay |
|---|---|
| Relay Contact Rating (AC) | 250 V AC @ 1 A |
| Relay Contact Rating (DC) | 30 V DC @ 2 A |
| Relay Make Time | 7 ms |
| Relay Break Time | 3 ms |
| Breakdown Voltage | 500 V AC |
| Insulation Resistance | ≥ 1000 MΩ |
| Isolation Voltage | 3750 V |
| Power Consumption | 2.5 W @ 24 V DC |
| Supply Voltage | +10 ~ +30 V DC |
It supports MODBUS TCP over Ethernet.
The module operates from +10 V to +30 V DC.
