DAM-3000 is a data acquisition module with 12 analog input channels. The input range can be selected as 0-5V, ±5V or 0-10V, ±10V. It has a sampling frequency of 10Hz, a resolution of 16bit, and an accuracy of ±0.2%. The module has a built-in watchdog and is powered by +10～+30VDC.
The DAM-3057 is a 12‑channel analog data acquisition module. It supports input ranges of 0‑5 V, ±5 V, 0‑10 V or ±10 V, provides 16‑bit resolution, ±0.2 % accuracy, and operates from a –10 V to +30 V DC supply with a power consumption of 1.3 W at 24 V DC.

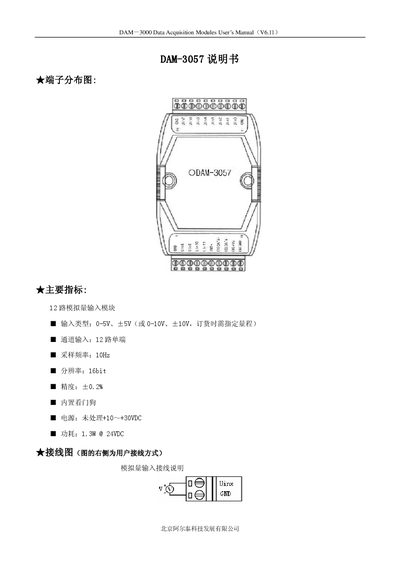

The manual includes wiring diagrams, terminal distribution, and configuration tables. Baud rates can be set from 1200 to 115200 bps, and input range codes are provided for each voltage option. The document also shows the internal watchdog and power connection details. This manual is written in Chinese.
| Analog input channels | 12 |
|---|---|
| Resolution | 16 bit |
| Input voltage range | 0‑5 V, ±5 V, 0‑10 V, ±10 V |
| Power supply | -10 V to +30 V DC |
| Power consumption | 1.3 W @ 24 V DC |
| Supported baud rates | 1200‑115200 bps |
The DAM-3057 provides 12 analog input channels.
It has a 16‑bit resolution.
The module operates from –10 V to +30 V DC.
Baud rates can be set to 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps.
