The DAM-6000 is a 16-channel digital input and output module developed by Altai Technologies. It supports dry contact and wet contact input signals, open collector, and a maximum load of 30V 100mA and 450mW.

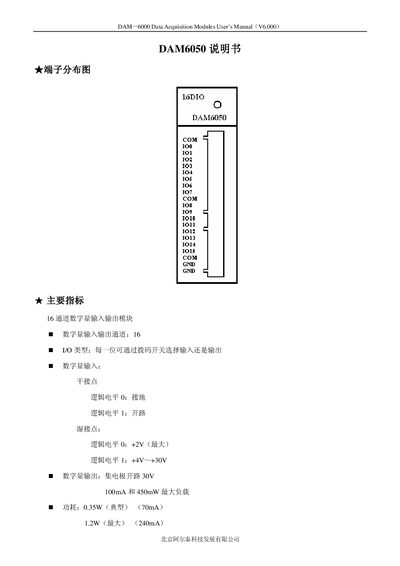

This manual describes the DAM6050 data acquisition module, its terminal layout, and how to connect the module for digital input and output functions. It includes safety notes, wiring diagrams, and guidance on configuring the internal logic of each channel.
Technical details such as input voltage ranges, power consumption, and maximum output current are listed, along with a full pin‑out table for all 16 I/O terminals. The document also explains the proper use of digital output channels to avoid damage. This manual is written in Chinese.
| Input voltage range | +2 V to +30 V |
|---|---|
| Typical power consumption | 0.33 W (70 mA) |
| Maximum power consumption | 12 W (240 mA) |
| Maximum digital output current | 100 mA |
The module typically consumes 0.33 W (70 mA) and can draw up to 12 W (240 mA) at maximum load.
It accepts an input voltage from +2 V up to +30 V.
