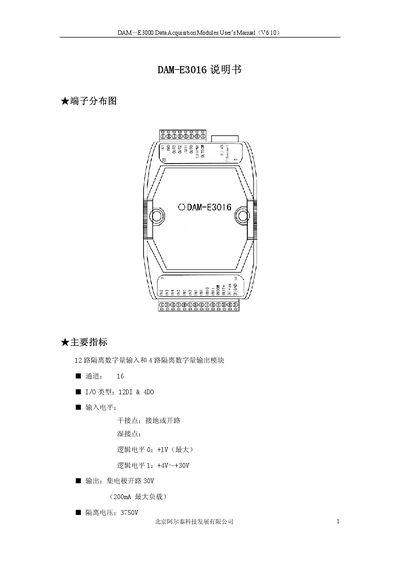

DAM-E3016 is a isolated digital input and output module from Altai Technologies. It has 12 isolated digital input and 4 isolated digital output, supports 10/100Mbps Ethernet and dual watchdog.
The DAM‑E3016 is a data acquisition module with 12 isolated digital inputs and 4 isolated digital outputs. It supports Ethernet, Modbus TCP, RTU, and ASCII protocols and provides configurable I/O and EEPROM settings.
The manual includes wiring diagrams, I/O voltage levels, isolation ratings, power requirements, Modbus command tables, address mapping, and EEPROM memory layout for network and module configuration. This manual is written in Chinese.
| Digital inputs | 12 isolated DI |
|---|---|
| Digital outputs | 4 isolated DO |
| Isolation voltage | 3750 V |
| Power supply | +10~+30 VDC |
| Power consumption | 2 W @24 V |
| Output current capability | 200 mA max load |
The module provides 12 isolated digital inputs and 4 isolated digital outputs.
The isolation voltage is rated at 3750 V.
It requires a DC supply of +10 V to +30 V.
