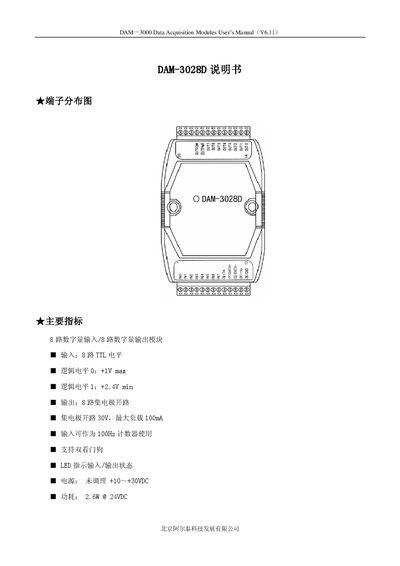

DAM－3000 Data Acquisition Module User's Manual, introduces the main indicators, terminal distribution diagram, wiring diagram, structure diagram, code configuration table and other contents of the module.
This User's Manual (V6.11) describes the DAM-3028D data acquisition module, which offers eight TTL input channels and eight output channels. Input voltage ranges from +1 V (max) to -12.4 V (min) and supports signal frequencies up to 100 Hz. Output channels can deliver up to 30 V with a maximum current of 100 mA. LED indicators show the status of inputs and outputs.
The module operates from a DC supply of +10 V to +30 V, consuming 2.6 W at 24 VDC. Communication settings include selectable baud rates from 1200 to 115200 bps. The manual also provides wiring diagrams and configuration tables for proper installation and use. This manual is written in Chinese.
| Input voltage range | +1 V max / -12.4 V min |
|---|---|
| Number of input channels | 8 |
| Number of output channels | 8 |
| Output voltage | 30 V max |
| Maximum output current | 100 mA |
| Power supply voltage | +10 V to +30 V DC |
| Power consumption | 2.6 W @ 24 VDC |
| Supported input frequency | Up to 100 Hz |
| Supported baud rates | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
The module accepts input voltages from +1 V (maximum) to -12.4 V (minimum).
The module operates from a DC supply of +10 V to +30 V.
Baud rates of 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps are supported.
