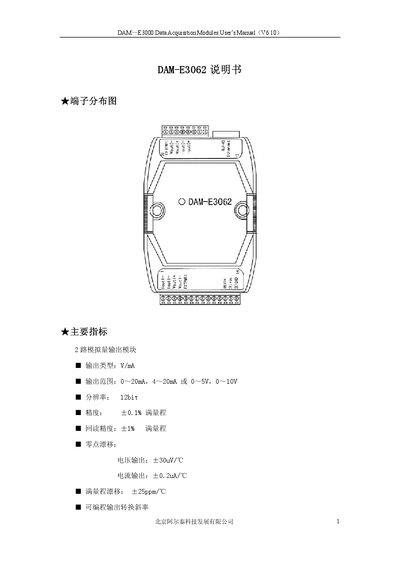

DAM-E3062 Analog Output Module User's Manual, mainly introduces the module's terminal distribution, main indicators, code configuration table, communication protocol and other content.
This manual provides detailed information on the DAM‑E3000 data acquisition module, including terminal diagrams, main specifications, and power requirements. It describes the supported MODBUS TCP communication protocol and the full set of command codes for reading and writing registers.
The document also includes address mapping tables, error response examples, and module version information, enabling users to configure, troubleshoot, and integrate the module into industrial automation systems. This manual is written in Chinese.
| Output type | V/mA |
|---|---|
| Output range | 0‑20 mA, 4‑20 mA or 0‑5 V, 0‑10 V |
| Resolution | 12 bit |
| Accuracy | ±0.1 % FS |
| Isolation voltage | 2000 V |
| Power supply | +10 V to +30 V DC |
| Power consumption | 1.4 W @ 24 V DC |
It uses the MODBUS TCP protocol for Ethernet‑based communication.
The isolation voltage is 2000 V.
The module consumes 1.4 W when powered at 24 V DC.
