DAM-E3061 is an analog output module produced by Altai Technology. It supports 0-20mA, 4-20mA or 0-5V, 0-10V output, accuracy ±0.1% full scale, readout accuracy ±1% full scale, zero point drift voltage output ±30uV/℃, current output ±0.2uA/℃, full scale drift ±25ppm/℃, programmable output conversion slope, support 10/100Mbps Ethernet, provide default web page or customized web page, support dual watchdog, power unconditioned +10~+30 VDC, power consumption 1.8W@24VDC.

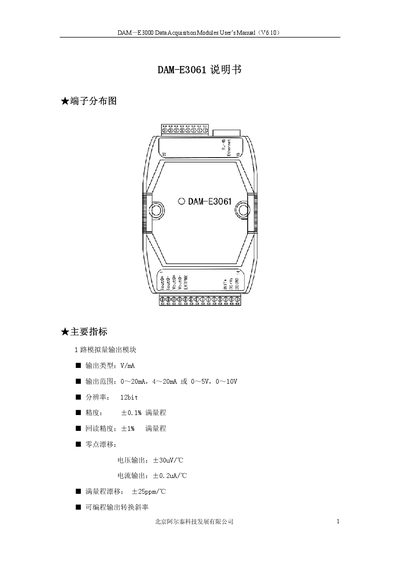

The Alti DAM‑E3000 is a data acquisition module designed for industrial automation. This manual provides the terminal layout, key specifications, and configuration tables for analog output ranges, resolution, and accuracy.
It also describes the supported communication protocols, primarily MODBUS TCP, and details the command set, watchdog functions, and EEPROM configuration. The document includes wiring diagrams, isolation voltage information, and power requirements for proper installation and operation. This manual is written in Chinese.
| Output type | V / mA |
|---|---|
| Output range | 0‑20 mA, 4‑20 mA, 0‑5 V, 0‑10 V |
| Resolution | 12 bit |
| Accuracy | ±0.1 % FS |
| Isolation voltage | 2000 V |
| Power supply | +10 V to +30 V DC |
| Power consumption | 1.8 W @ 24 V DC |
| Ethernet speed support | 10/100 Mbps |
The module supports the MODBUS TCP protocol for Ethernet communication.
The isolation voltage is rated at 2000 V.
Analog outputs can be configured for 0‑20 mA, 4‑20 mA, 0‑5 V, or 0‑10 V.
Yes, the module supports a dual watchdog feature.
