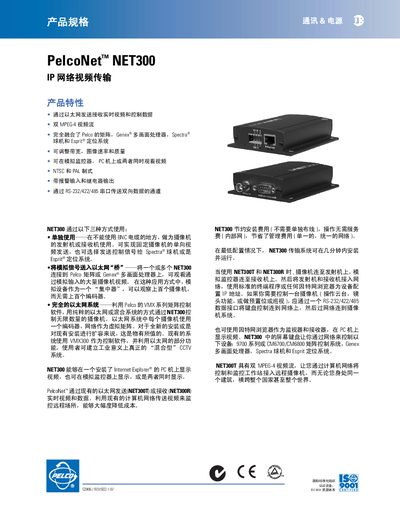

PelcoNet™ NET300 IP network video transmission is a device that sends and receives real-time video and control data over Ethernet. It has dual MPEG-4 video streams, adjustable bandwidth, image rate and quality, and can display video on analog monitors, PC or both simultaneously.
This manual provides an overview of the Pelco NET300 IP video transfer system, describing its dual MPEG‑4 video streams, support for PAL/NTSC formats, and integration with Pelco VMX series controllers. It covers both standalone and hybrid Ethernet configurations, allowing connection of multiple cameras and control devices.
Installation requirements, network interfaces, video specifications, environmental limits, and physical dimensions are detailed, along with recommended PC hardware for viewing and configuring the system. This manual is written in Chinese.
| Minimum PC CPU | Pentium 4 1.6 GHz |
|---|---|
| Minimum PC RAM | 256 MB |
| Network Ethernet Speed | 100 Mbit |
| LAN Data Rate | 96 Kbps – 1.5 Mbps |
| Supported Video Formats | PAL 704×576 (4CIF), NTSC 704×480 (4SIF) |
| Operating Temperature | 32 °C – 122 °C |
| Maximum Relative Humidity | 80 % |
| Physical Dimensions | 34 W × 12 H × 45 D mm (8.6 × 3.1 × 11.4 cm) |
| Weight | 2 lb (0.9 kg) |
The NET300 supports both PAL and NTSC video formats, with PAL at 704 × 576 (4CIF) and NTSC at 704 × 480 (4SIF).
The device can transmit data over Ethernet at rates ranging from 96 Kbps up to 1.5 Mbps.
The NET300 operates between 32 °C and 122 °C.
A PC with a Pentium 4 1.6 GHz processor, 256 MB RAM, Windows 98/2000/XP, 100 Mbit Ethernet, and a graphics card capable of 1024 × 768 resolution is required.
