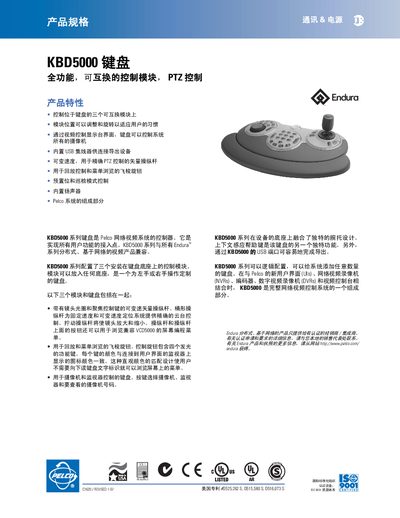

This document introduces the ISO 9001 certified company Pelco's KBD5000 keyboard, which features a full-function, interchangeable control module and PTZ control. It is compatible with Pelco's network video system and can control all cameras in the system. The keyboard also features a built-in USB hub, variable speed vector joystick for precise PTZ control, shuttle knob for playback control and menu navigation, and other characteristics.
The KBD5000 series keyboard is a network video system controller with three interchangeable modules mounted on the keyboard base. The modules include a variable‑speed vector joystick with lens aperture and focus controls, a shuttle knob for playback and menu navigation, and dedicated keys for selecting cameras and monitors. The keyboard also features a built‑in USB hub for easy export of video control data and optional wrist‑support for ergonomic use.
The manual lists technical specifications such as a universal 100‑240 VAC input voltage, 12 VDC output, USB 2.0 ports, and three power cables for US, EU, and UK standards. It also details accessories, environmental operating ranges, and certifications (UL, CE, GOST, etc.). This manual is written in Chinese.
| Input voltage | 100‑240 VAC, 50/60 Hz |
|---|---|
| USB interface | USB 2.0 (USBA type connector) |
