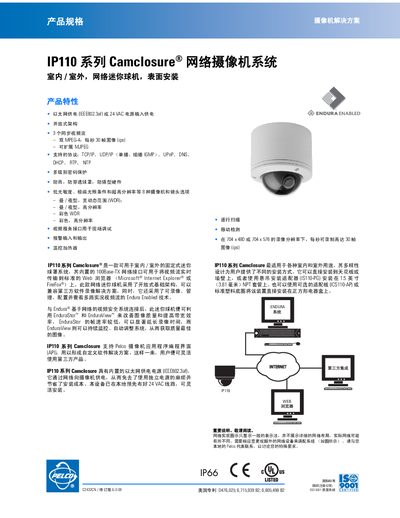

This document describes the ISO 9001 quality system product specifications of C3432CN / Revised Version 6-3-08 International Standard Organization registered company. The camera solution IP110 series Camclosure network camera system features Ethernet power supply, open architecture, multi-level password protection, rain and tamper resistance, low light sensitivity, and ultra-high resolution among 8 camera and lens options.
The IP110 Camclosure is a fixed‑mount mini‑dome camera system designed for indoor and outdoor use. It supports Ethernet Power over Ethernet (IEEE802.3af) or 24 VAC input, offers an open architecture, and integrates with third‑party recording software via Endura technology.
The manual details the system’s hardware options, mounting accessories, video streaming capabilities (up to three MPEG‑4/MJPEG streams), network protocols, environmental ratings, and power consumption, helping installers configure and maintain the camera system.
| Power input | 24 VAC (18‑36 V) or PoE (IEEE802.3af) |
|---|---|
| PoE power consumption | < 7.5 W (no heater) / < 13 W (with heater) |
| Weight | 2.20 lb (1.00 kg) |
| Operating temperature | -50 °F to 122 °F (‑46 °C to 50 °C) |
| Video compression | MPEG‑4 (MJPEG optional) |
| Number of video streams | 3 synchronized streams |
It can be powered by Ethernet PoE (IEEE802.3af) or by a 24 VAC supply.
The system supports up to three synchronized video streams.
The device operates from –50 °F to 122 °F (‑46 °C to 50 °C).
It can be surface‑mounted on ceilings or walls, or installed with a suspension adapter (IS110‑PG) on a 1.5‑inch NPT conduit, or with optional adapter plates.
