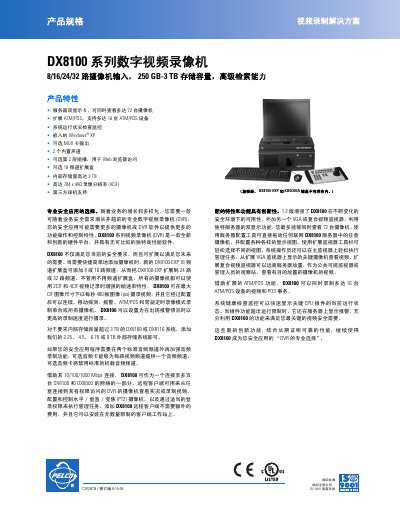

The DX8100 series digital video recorder has 8/16/24/32 channels of camera input, 250GB-3TB storage capacity, and advanced retrieval capabilities. Product features include server dual display cards, which can simultaneously view up to 72 cameras, extended ATM/POS, support up to 16 ATM/POS devices, system health check monitoring, embedded Windows®XP, optional MUX card output, 2 built-in channels, optional Layer 2 multicast, for Web browser access, optional 16-channel expansion box, internal storage capacity up to 3TB, up to 704x480 recording resolution (4CIF), and third-party ball support.
This manual describes the DX8100 series digital video recorder, covering its video input capacity, storage options, network connectivity, and optional accessories. It explains how to configure cameras, use dual‑display monitoring, and manage recordings with features such as motion detection, alarm recording, and ATM/POS integration.
Technical specifications, electrical requirements, installation dimensions, and remote client usage are provided, along with guidance on optional expansion boxes, audio cards, and external RAID storage. The document also lists regulatory certifications and contact information for Pelco support. This manual is written in Chinese.
| Input voltage | 100–240 VAC ±10%, 50/60 Hz |
|---|---|
| Maximum power consumption | 350 W |
| Video input channels | Up to 32 |
| Internal storage capacity | Up to 3 TB |
| Network interface | 10/100/1000 Mbps Ethernet |
| Dimensions (desktop) | 19.9" × 17.0" × 7.0" (50.55 × 43.18 × 17.78 cm) |
| Weight (DX8132‑3000) | 46.4 lb (21.1 kg) |
| Operating system | Embedded Windows XP |
The DX8100 can handle up to 32 video input channels.
The recorder can store up to 3 TB of video internally.
The system runs an embedded version of Windows XP.
It includes a 10/100/1000 Mbps Ethernet port for network connectivity.
