The EH5700 series is an indoor/outdoor enclosure designed for Pelco's medium and heavy duty pan/tilt heads or fixed mounting bases. Aluminum construction, measuring 58.42 cm (EH5723) and 73.66 cm (EH5729), these enclosures accept large format cameras with fixed or motorized zoom lenses.
The EH5700 series shield is a full‑aluminum, front‑opening enclosure designed for Pelco medium and heavy‑duty PTU or fixed mounting brackets. It accommodates large‑format cameras with fixed or varifocal lenses and provides easy access for maintenance via a pneumatic‑spring latch.

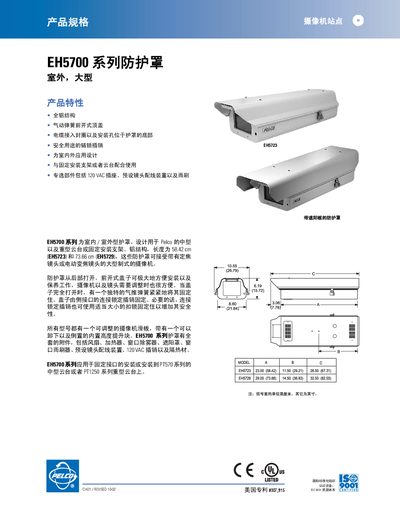

The manual lists technical specifications such as input voltage options, temperature range, dimensions, weight, and construction details, and it describes a full range of optional accessories—including fans, heaters, sunshades, defrosters, wipers, and preset lens wiring kits—as well as recommended mounting brackets and compatible PTU models. This manual is written in Chinese.
| Input voltage | 24, 120 VAC or 230 VAC, 50/60 Hz |
|---|---|
| Operating temperature range | -10 °F to 120 °F (‑23 °C to 49 °C) |
| Dimensions (EH5723 model) | 22" L × 7.5" W × 5.5" H (55.88 × 19.05 × 13.97 cm) |
| Weight (EH5723 model) | 11 lb (4.98 kg) |
| Construction material | Aluminum, 0.080 in (0.20 cm) thickness |
| Coating | Gray polyester powder coating |
| Cable entry size | 2 PG13.5 compression seals, max wire diameter 0.47 in (1.19 cm) |
It can be used with fixed mounting brackets or Pelco PT570 series medium PTU or PT1250 series heavy‑duty PTU.
Optional accessories include fan components, heater components, sunshade, window defroster, window wiper, preset lens wiring device, 120 VAC outlet, and insulation material.
The shield is rated for indoor and outdoor use from –10 °F to 120 °F (‑23 °C to 49 °C).
