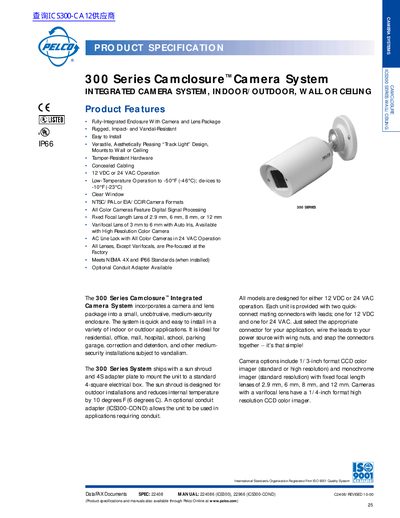

The 300 Series Camclosure™ Integrated Camera System is a small, unobtrusive, medium-security enclosure that incorporates a camera and lens package. The system is quick and easy to install in a variety of indoor or outdoor applications. It is ideal for residential, office, mall, hospital, school, parking garage, correction and detention, and other medium-security installations subject to vandalism. The 300 Series S
The 300 Series Camclosure™ Integrated Camera System combines a camera and lens package in a compact, vandal‑resistant enclosure. It supports both 12 VDC and 24 VAC power, includes a sun shroud for outdoor installations, and meets NEMA 4X and IP66 standards for durability.
The manual covers product features, electrical connections, camera and lens specifications, physical dimensions, and recommended power supplies. It also lists model variations, optional conduit adapters, and compliance with various safety and environmental standards.
| Operating Voltage | 12 VDC or 24 VAC |
|---|---|
| Operating Temperature | -50 °F to 122 °F (‑46 °C to 50 °C) |
| Unit Weight | 1.45 lb (0.66 kg) |
| IP Rating | IP66 (when installed properly) |
| NEMA Rating | NEMA 4X (when installed properly) |
| Fixed Lens Options | 2.9 mm, 6 mm, 8 mm, 12 mm |
| Varifocal Lens Option | 3 mm to 6 mm with Auto Iris |
The system can be powered by either 12 VDC or 24 VAC, with separate connectors for each voltage.
Fixed focal length lenses are offered in 2.9 mm, 6 mm, 8 mm, and 12 mm, and a varifocal lens ranging from 3 mm to 6 mm with auto iris is also available.
Pelco recommends the TF2000 series power supplies, such as the MGS, MGS'E, and WCS series, for 24 VAC camera installations.
