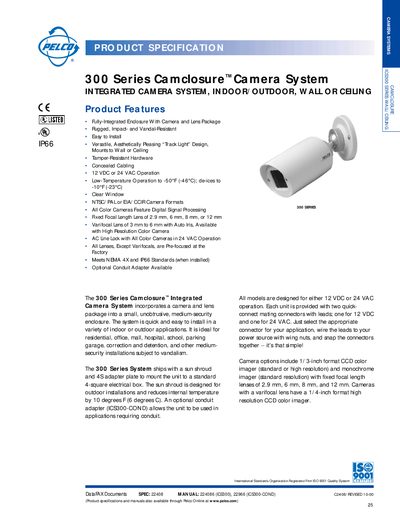

The 300 Series Camclosure™ Integrated Camera System is an integrated camera and lens system that can be installed on walls or ceilings in indoor or outdoor applications. It is rugged, impact- and vandal-resistant, and easy to install. The system features a “track light” design that is aesthetically pleasing and can be mounted on walls or ceilings.
The Pelco 300 Series Camclosure™ Integrated Camera System combines a camera and lens package into a small, unobtrusive enclosure designed for indoor or outdoor use. It is built to be pugged, impact-, and vandal-resistant with tamper-persistent hardware and concealed cabling. The system supports both 12 VDC and 24 VAC operation and features low-temperature capabilities down to -50°F (-46°C).
| Input Voltage | 12 VDC or 24 VAC (±10%) |
|---|---|
| Operating Temperature | -50°F to 122°F (-46°C to 50°C) |
| Pan/Tilt Range | 180° pan; 180° tilt |
| Horizontal Resolution (NTSC) | 470 TV lines (High Res Fixed Lens) |
| Min. Illumination Sensitivity | Less than 1.2 lux (f1.2) |
The unit operates from -50°F to 122°F and de-ices at -10°F.
The heater turns on at 50°F and off at 80°F.
The system allows a manual pan adjustment of 180°.
