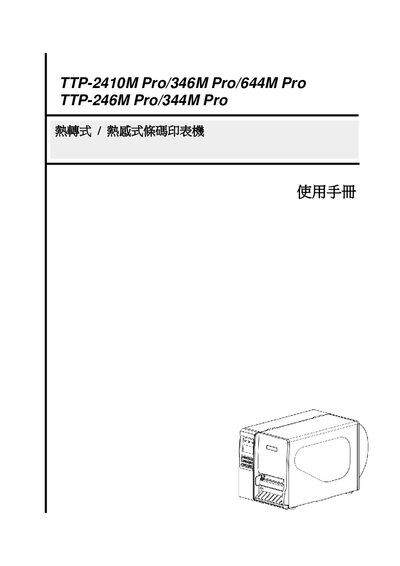

The TSC TTP-2410M/346M/644M/246M/344M Pro thermal transfer and direct barcode printer user manual provides setup, operation, diagnostics, and maintenance…
The TTP series barcode printers are built with an aluminum alloy chassis, a back‑lit LCD panel, and support both thermal‑transfer and thermal‑direct printing. They offer multiple DPI options, a variety of sensor configurations, and extensive connectivity including USB, RS‑232, Ethernet, and optional PS/2 keyboard.
This manual covers product overview, installation, label and ribbon loading, print and sensor setup, communication settings, diagnostic tools, routine maintenance, and troubleshooting. Safety warnings, restricted substance information, and regulatory certifications are also included. This manual is written in Chinese.
| Print resolution (DPI) | 203 / 300 / 600 dpi |
|---|---|
| Printing method | Thermal transfer / Thermal direct |
| Body material | Aluminum alloy casting |
| LCD display | 128 × 64 pixel back‑lit LCD |
| Memory | 32 MB DRAM, 8 MB FLASH, SD‑card slot (up to 4 GB) |
| Processor | 32‑bit high‑performance processor |
The printer contains a CR2032 lithium battery for the RTC; using an incorrect battery type can cause an explosion.
