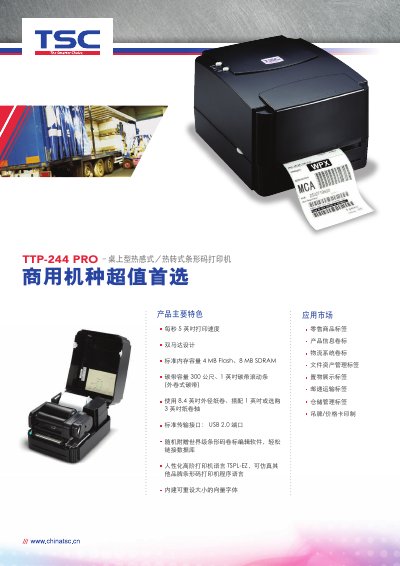

The TSC TTP-244 PRO is a desktop barcode printer supporting thermal transfer and direct thermal printing with up to 5 inches per second speed and USB 2.0…
The TTP-244 PRO is a compact desktop printer designed for a wide range of labeling applications, from retail tags to logistics and warehouse labels. It features a dual‑motor design, 4 MB Flash and 8 MB SDRAM memory, and comes with bundled label‑design software that supports many barcode formats.
Technical specifications include a 5 in/s print speed, 203 dpi resolution, USB 2.0 interface, and optional SD‑card expansion up to 4 GB. The unit measures 232 mm × 156 mm × 288 mm, weighs 2.5 kg, and can handle 300 m of ribbon on a 1‑in roll. It supports a full set of 1D and 2D barcodes and includes sensors for media detection and ribbon‑out monitoring. This manual is written in Chinese.
| Print speed | 5 in/s |
|---|---|
| Memory | 4 MB Flash, 8 MB SDRAM |
| Ribbon capacity | 300 m |
| Ribbon roll width | 1 in |
| Dimensions (W×H×L) | 232 mm × 156 mm × 288 mm |
| Weight | 2.5 kg |
| Interface | USB 2.0 |
| Power (AC input) | AC 100‑240 V, 2.5 A, 50‑60 Hz |
| Power (DC output) | DC 24 V, 2.5 A, 60 W |
| Resolution | 203 dpi |
| Media sensor | Paper gap sensor (penetrating) |
| Supported 2D barcodes | PDF‑417, Maxicode, DataMatrix, QR Code, Aztec |
It can print up to 5 inches per second.
The printer includes a standard USB 2.0 port.
The printer can accommodate up to 300 meters of ribbon on a 1‑inch roll.
