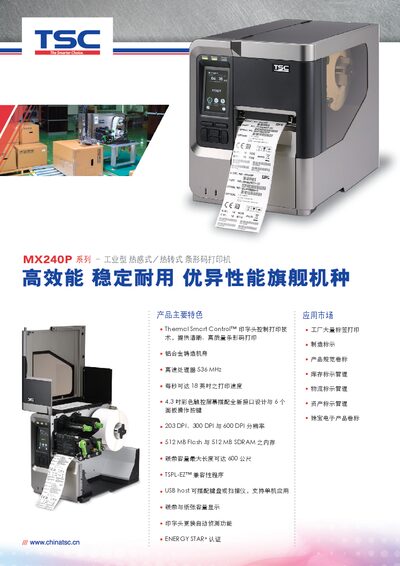

The TSC MX240P Series industrial thermal direct/transfer barcode printer offers high-speed printing, a 4.3‑inch color touchscreen, and extensive…
The MX240P Series is an industrial‑grade thermal direct/transfer barcode printer designed for high‑volume label production. It features a 4.3‑inch color touch screen, a 536 MHz processor, 512 MB Flash and 512 MB SDRAM memory, and supports 203, 300 and 600 DPI resolutions.
The printer provides multiple interfaces including RS‑232, USB 2.0, Ethernet, USB host ports, optional parallel and Wi‑Fi modules, and can handle media up to 356 mm wide. It meets a range of certifications (FCC, CE, UL, etc.) and operates in temperatures from 5 °C to 40 °C with up to 85 % non‑condensing humidity. This manual is written in Chinese.
| Maximum printing speed | 18 in/s |
|---|---|
| Resolution options | 203, 300, 600 DPI |
| Memory | 512 MB Flash, 512 MB SDRAM |
| Processor | 536 MHz |
| Dimensions (W×H×D) | 300 mm × 393 mm × 510 mm |
| Weight | 18 kg |
| Power input | AC 100‑240 V, 4‑2 A, 50‑60 Hz |
| Interfaces | RS‑232, USB 2.0, Ethernet, USB host, Parallel, Wi‑Fi (optional) |
The printer operates at temperatures from 5 °C to 40 °C with 25 %–85 % non‑condensing humidity.
