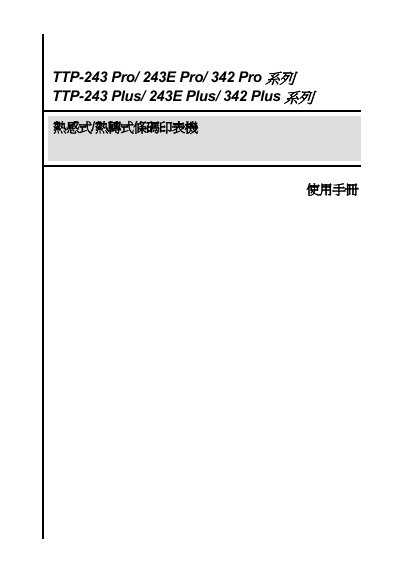

User manual for TSC TTP-243 and TTP-243 Plus series barcode printers, covering installation, operation, maintenance, and specifications.
The TTP-243 and TTP-243 Plus series are compact desktop barcode printers that support both thermal and thermal‑transfer printing. They offer adjustable print speeds of up to 3 inches per second for the 243 series and 1.5–2 inches per second for the 342 series, with resolutions of 203 dpi or 300 dpi and a wide range of supported 1D and 2D barcode formats.
This manual provides a product overview, unpacking checklist, detailed installation steps, operation instructions, and simple maintenance procedures. It also lists consumable specifications, safety certifications, and troubleshooting tips for technicians and end users. This manual is written in Chinese.
| Resolution | 203 dpi or 300 dpi |
|---|---|
| Print Speed | 1.5–2 inches per second (TTP‑342 series), 3 inches per second (TTP‑243 series) |
| Supported 2D Barcodes | Maxicode, PDF‑417, DataMatrix, QR code, GS1 DataBar family (RSS) |
| Label Width Range | 25 mm – 104 mm (effective 23 mm – 102 mm) |
| Carbon Ribbon Width | 40 mm – 110 mm |
| Safety Certifications | CE Class A, FCC Class A, CCC, TÜV, C‑Tick Class A |
The printer is certified CE Class A, FCC Class A, CCC, TÜV, and C‑Tick Class A.
