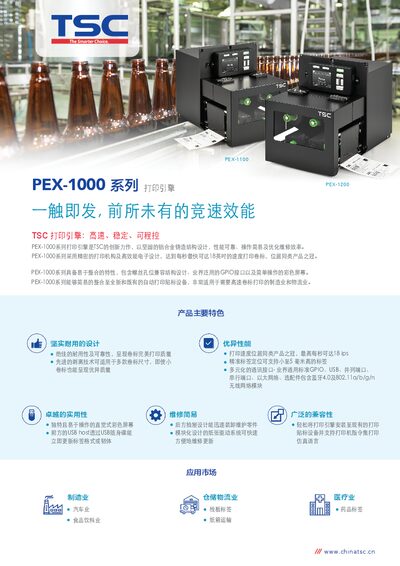

The TSC PEX-1000 series printing engine offers high‑speed, durable aluminum construction with extensive barcode support and multiple interfaces.
The PEX-1000 series printing engine from TSC features a solid aluminum‑cast structure, a high‑efficiency electronic design and a fast printing capability of up to 18 ips. It is designed for easy integration into new or existing label‑printing equipment and targets manufacturing, logistics, medical, automotive and food‑beverage markets.
The engine supports a wide range of 1‑D and 2‑D barcodes, offers numerous communication options (RS‑232, USB 2.0, Ethernet, GPIO, optional Bluetooth 4.0 and Wi‑Fi), and includes built‑in sensors for paper, ribbon and temperature monitoring. Technical specifications such as resolution, speed, power supply and memory are detailed in the sheet. This manual is written in Chinese.
| Maximum printing speed | 18 ips |
|---|---|
| Print resolution | 300 dpi (12 dots/mm) |
| Maximum print width | 245 mm |
| Maximum print length | 300 mm |
| Power input | AC 100‑240 V, 4‑2 A, 50‑60 Hz |
| DC output options | 5 V 5 A, 24 V 7 A, 36 V 1.4 A |
| Weight | 13 kg |
| Processor | 32‑bit high‑efficiency processor |
The engine can print up to 18 inches per second.
Supported 1‑D codes include Code 11, Code 39, Code 93, Code 128, Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5, EAN‑8/13/14, UPC‑A/E, MSI, PLESSEY, POSTNET, RSS‑Stacked, GS1 DataBar, China Post and others.
It supports PDF‑417, Micro PDF‑417, Maxicode, DataMatrix, QR code, Aztec, TLC‑39 and RSS.
