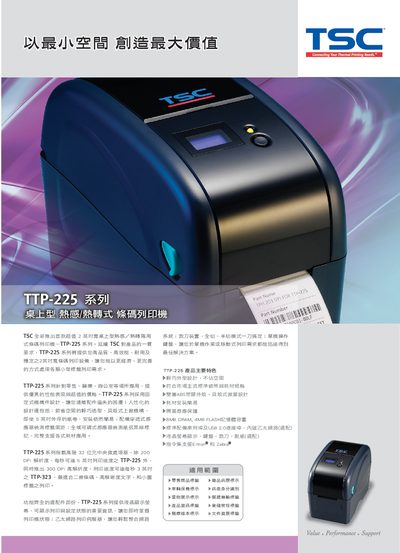

The TSC TTP-225 and TTP-323 user manual provides operating instructions, specifications, and configuration details for these label printers.
This manual describes the TTP-225 and TTP-323 label printers, highlighting their compact design, high‑quality printing, and suitability for office, retail, and industrial environments. It covers key features such as LCD display, built‑in Ethernet print server, and a variety of supported barcode symbologies.
Technical specifications are listed, including print resolution, speed, media dimensions, memory, power requirements, environmental limits, and regulatory certifications. Connection options (USB 2.0 and Ethernet) and supported consumables are also detailed. This manual is written in Chinese.
| Print resolution (TTP-225) | 209 DPI |
|---|---|
| Print resolution (TTP-323) | 300 DPI |
| Print speed | 2‑5 ips |
| Maximum print width | 54 mm (2.13") |
| Maximum print length | 2,286 mm (90") |
| Flash memory | 4 MB |
| USB interface | USB 2.0 |
| Input voltage | AC 100‑240 V |
| Operating temperature | 5 °C – 40 °C |
| Storage temperature | -40 °C – 60 °C |
| Certifications | FCC Class B, CE Class B, C‑Tick Class B, UL, CUL, THV/Safety, CCC |
The TTP-225 prints at 209 DPI, while the TTP-323 prints at 300 DPI.
They support a maximum print width of 54 mm (2.13 in) and a maximum length of 2,286 mm (90 in), with paper roll diameters up to 127 mm.
Both models provide a USB 2.0 port and a built‑in Ethernet print server for network printing.
The printers operate from 5 °C to 40 °C (41 °F‑104 °F) at 25‑85 % humidity, and can be stored from –40 °C to 60 °C (‑40 °F‑140 °F) at 10‑90 % humidity.
