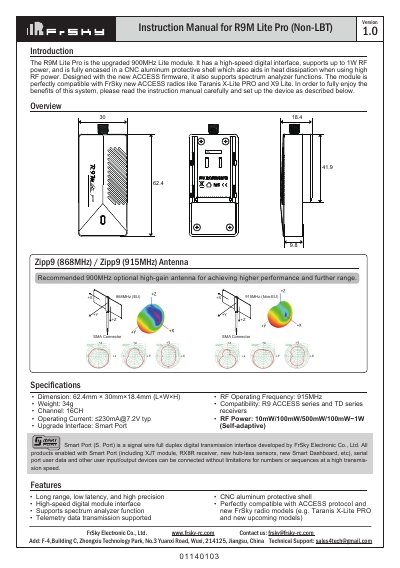

The R9M Lite Pro is an upgraded 900MHz Lite module, which supports up to 1W RF power. It has a high-speed digital interface and is fully encased in a CNC aluminum protective shell. The module is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite.
The FrSky R9M Lite Pro is an upgraded 900MHz Lite module featuring a high-speed digital interface and a CNC aluminum protective shell. It supports up to 1W of RF power and includes spectrum analyzer functions. The module is fully compatible with FrSky ACCESS radios, such as the Taranis X-Lite PRO and XQ Lite, utilizing the new ACCESS firmware.
| Operating Frequency | 915MHz |
|---|---|
| Weight | 34g |
| Operating Current | [email protected] typ |
| RF Power | 10mW/100mW/500mW/100mW~1W |
| Channel | 16CH receivers |
| Dimensions | 62.4mm x 30mm x 18.4mm |
The module operates at 915MHz.
The module supports 10mW, 100mW, 500mW, and up to 1W.
The modes are No Pulse, Hold, and Custom.
