R-XSR is a full-duplex remote control receiver launched by FrSky. It supports 16 channels. Through the S.Port interface, it can be connected with XJT modules, XSR, X6R and X8R receivers, new hub-less sensors, new Smart Dashboards and other products to realize wireless transmission of serial port user data and other user input/output devices.

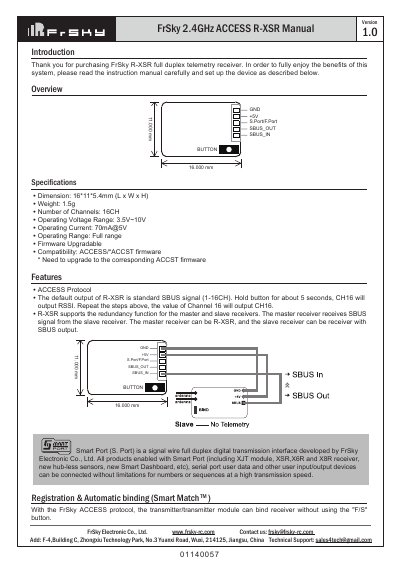

The FrSky R-XSR is a 2.4GHz full-duplex telemetry receiver compatible with the ACCESS protocol. It features a Smart Port for high-speed digital transmission and supports up to 16 channels with an operating voltage range of 3.5V to 10V. The device is designed for use with FrSky transmitters and modules to enable advanced telemetry and control functions. This manual is written in Chinese.
| Dimensions | 16*11*5.4mm (L x W x H) |
|---|---|
| Weight | 1.5g |
| Number of Channels | 16CH |
| Operating Voltage Range | 3.5V~10V |
| Operating Current | 70mA@5V |
| Operating Range | Full range |
The default output of the R-XSR is a standard SBUS signal covering channels 1-16.
The receiver measures 16*11*5.4mm in length, width, and height, and weighs 1.5g.
The device operates within a voltage range of 3.5V to 10V.
The receiver supports a total of 16 channels.
