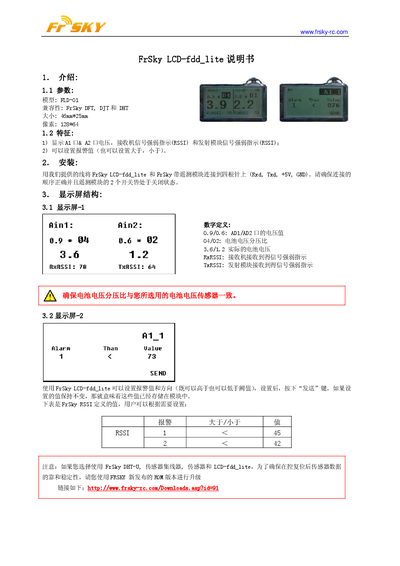

This document introduces the parameters and features of FrSky LCD-fdd_lite, including displaying the voltage of A1 and A2 ports, receiver signal strength indicator (RSSI), and transmitter signal strength indicator (RSSI). It can also set alarm values.
The FrSky LCD-fdd_lite is a compact telemetry LCD module (46 mm × 25 mm) with a 128 × 64 pixel display. It shows Al and A2 port voltages, receiver and transmitter RSSI, and allows configurable alarm thresholds.
Installation is performed by connecting the module to the four‑pin telemetry port (Rxd, Txd, +5 V, GND) using the supplied cable, ensuring the telemetry module switches are off. Alarm values can be set higher or lower than a threshold and saved by pressing the Send key. This manual is written in Chinese.
| Model | FLD-01 |
|---|---|
| Compatibility | FrSky DFT, DJT, DHT |
| Size | 46 mm × 25 mm |
| Pixel resolution | 128 × 64 |
| Displayed values | Al/A2 voltage, RSSI for receiver and transmitter |
| Alarm setting | Configurable high/low thresholds |
