FrSky Current Sensor FAS7 ADV Lite is a small sensor for measuring current up to 7A with an accuracy of +/- 0.1A.
The FrSky FAS7 ADV Lite is a compact current sensor designed to measure currents up to 7 Amps with an accuracy of +/- 0.1 Amp. It features smart matching capabilities for both FBUS and S.Port protocols, allowing it to automatically pair with compatible receivers without manual configuration.

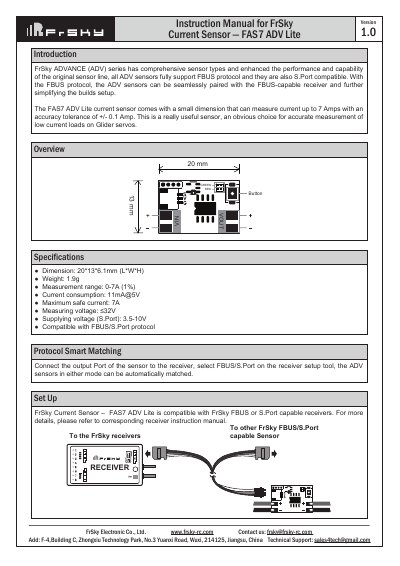

The document details the physical specifications, including dimensions of 20*13*6.1mm and a weight of 1.9g. It also outlines connection procedures, noting that the battery and ESC must be connected to the BAT and ESC ports respectively with correct polarity. The sensor has a default physical ID of 02, which can be modified via ETHOS or FreeLink App.
| Measurement range | 0-7A (1%) |
|---|---|
| Current consumption | 11mA@5V |
| Maximum safe current | 7A |
| Measuring voltage | ≤32V |
| Supplying voltage (S.Port) | 3.5-10V |
The sensor supports both FrSky FBUS and S.Port protocols.
The default physical ID is 02.
