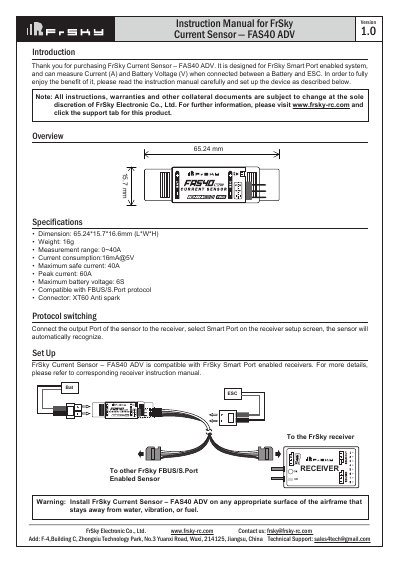

FrSky Current Sensor – FAS40 ADV is a current sensor designed for FrSky Smart Port system, and can measure Current (A) and Battery Voltage (V) when connected between a Battery and ESC.
The FrSky FAS40 ADV is a current sensor designed for FrSky Smart Port enabled systems. It measures current and battery voltage when connected between a battery and ESC. The device automatically recognizes upon connection to the receiver.
| Dimension | 65.24*15.7*16.6mm (L*W*H) |
|---|---|
| Weight | 16g |
| Measurement range | 0~40A |
| Current consumption | 16mA@5V |
| Maximum safe current | 40A |
| Peak current | 60A |
| Maximum battery voltage | 6S |
| Connector | XT60 |
The default physical ID for this sensor is 02.
Yes, all sensors could daisy chain with each other through their Smart Port.
