This document introduces the features of the product. It is a kind of high-performance product with high-speed transmission and high-precision positioning. The product is suitable for a variety of scenarios, such as industrial automation, medical equipment, and precision manufacturing.

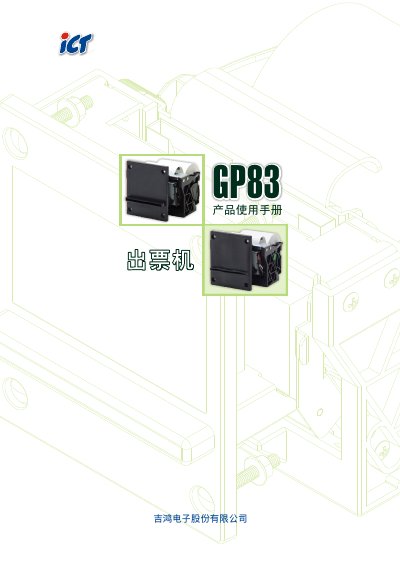

This manual details the GP83's technical specifications, dimensions, and supported paper types, including printing speed up to 80 mm/s and interfaces such as RS232 and USB. It also lists environmental limits, power requirements, and physical dimensions of both small and large paper rolls.
The guide covers step‑by‑step installation of power, communication, and paper handling components, explains operation modes and control coding, and provides troubleshooting tips for sensor errors and printing issues. A parts diagram and PCB circuit schematics are included for service technicians. This manual is written in Chinese.
| Printing speed | Up to 80 mm/s |
|---|---|
| Interface | RS232, USB |
| Power supply voltage | 21.6 ~ 26.4 V DC |
| Storage temperature | -25 °C ~ +70 °C |
| Supported paper | KF50‑HDA or equivalent |
The GP83 supports KF50‑HDA or equivalent paper, with small and large roll dimensions specified in the manual.
The device requires a DC input of 21.6 ~ 26.4 V and can consume up to 72 W of power.
