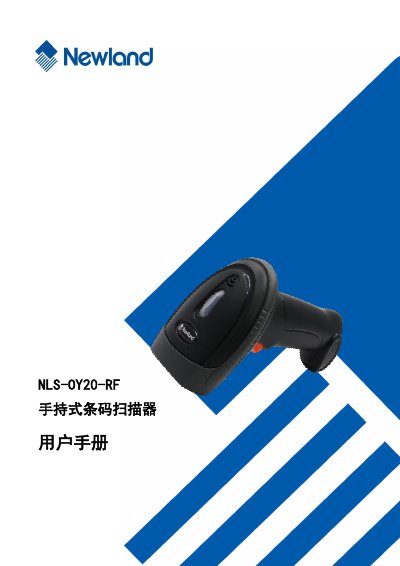

NLS-OY20-RF is a handheld barcode scanner. This manual provides users with a guide and instructions on how to use the product. The handheld barcode scanner features safe and effective use, maintenance, and care.
The Newland NLS-OY20-RF is a 2D handheld barcode scanner that utilizes intelligent image recognition technology. It supports reading various mainstream 1D barcodes as well as 2D codes including PDF417, QR Code (QR1, QR2, Micro QR), and Data Matrix versions.
The guide details how to operate the device, perform maintenance, and configure system parameters via specific setting barcodes. Users can adjust settings for illumination, sound alerts, communication interfaces, keyboard modes, and data formats such as prefixes, suffixes, and checksums. This manual is written in Chinese.
| Product Type | 2D Handheld Barcode Scanner |
|---|---|
| Supported 1D Barcodes | Code 128, UCC/EAN-128, EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2 of 5, ITF-6, ITF-14, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey |
| Supported 2D Barcodes | PDF417, Data Matrix, QR (QR1, QR2, Micro QR), Hanxin Code |
| Special Reading Capability | LCD Display and Mobile Phone Screen Barcodes |
Connect the wireless receiver to the host and press the trigger while scanning a barcode to automatically power on and pair.
The device does not have a dedicated power-off button; it automatically enters a low-power sleep mode after inactivity.
Use a soft cloth like an eyeglass cleaning cloth to wipe the window. Do not spray liquids or use cleaners other than water.
