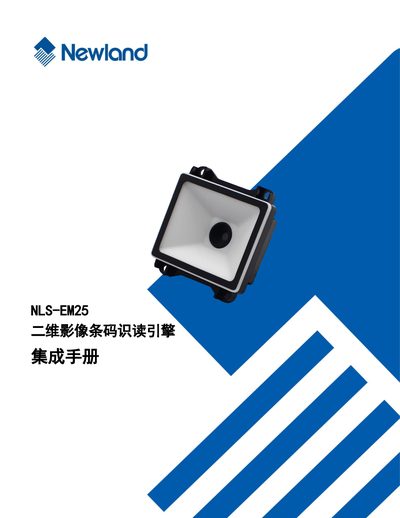

The Newland EM25 integration manual provides installation, electrical specifications, interface details, and tool information for the 2D barcode imaging engine.
The EM25 is a thin, embedded 2D barcode imaging engine that uses CMOS image technology and Newland's intelligent image recognition to read barcodes on paper, magnetic cards and other media. It is designed for easy integration into OEM products such as handheld, portable or fixed barcode collectors.
The manual covers the engine's installation requirements, environmental and ESD considerations, electrical characteristics, connector definitions, external circuit reference designs, and the supporting development tools (EVK and EasySet software). It also includes safety information for the LED illumination and window coatings. This manual is written in Chinese.
| LED illumination lamps | 8 |
|---|---|
| Decode success indicator lights | 2 |
| LED safety standard | IEC 62471:2006 |
The EM25 includes eight LED illumination lamps.
It provides two decode‑success indicator lights that illuminate when a barcode is successfully read.
