EntraPass Special Edition is a highly secure single-workstation access control system that can control up to 128 doors, support an unlimited number of users, and has features such as quick installation, encrypted site communication, and email reporting capability.
The EntraPass Special Edition is a highly secure, single‑workstation access control system that can manage up to 128 doors and an unlimited number of users. It offers email reporting, encrypted site communication, built‑in language translation for up to 100 languages, and integrated card‑issuing solutions. The software supports elevator control for up to 64 floors and can be managed remotely over a TCP/IP network with 128‑bit AES encryption.

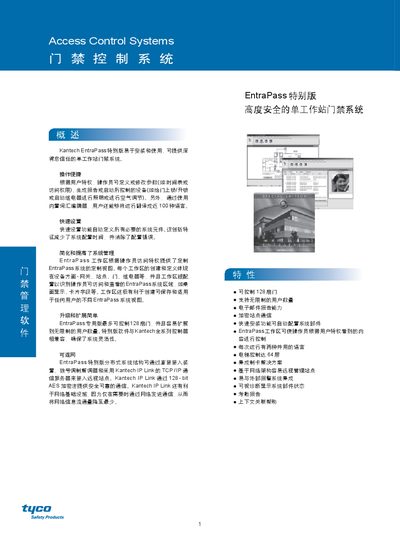

The manual provides guidance on quick installation, system architecture, and recommended computer specifications. It details hardware limits such as up to 64 controllers per site, 32 controllers per loop, and card capacities for various Kantech controller models. Compatibility with Windows 2000/XP/2003/Vista is listed, along with hardware requirements for CPU, memory, storage, and network interfaces.
| Maximum doors controlled | 128 |
|---|---|
| Supported users | Unlimited |
| Elevator control floors | 64 |
| Network encryption | 128‑bit AES |
| Maximum controllers per site | 64 |
| Maximum controllers per loop | 32 |
| Recommended CPU | Pentium® IV, 1.8 GHz |
| Recommended RAM | 512 MB |
| Required hard‑disk space | 10 GB |
| Screen resolution | 1024 × 768 |
It can control up to 128 doors.
Windows 2000, Windows XP, Windows 2003 (standard or enterprise), and Windows Vista are supported.
The system provides two simultaneous languages for each run.
A site can have up to 64 controllers.
