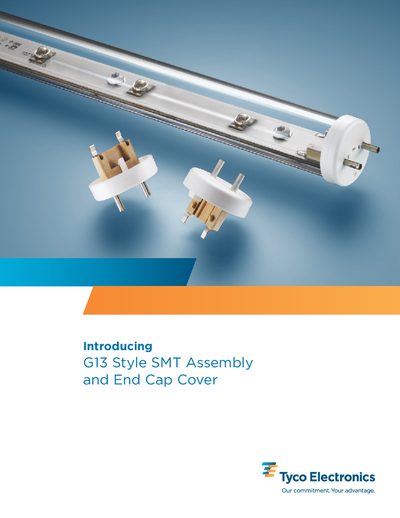

The G13 Style SMT Assembly and End Cap Cover are designed for use on printed circuit board LED strip lighting modules in T8 and T12 fluorescent retrofit LED tubes. The assembly features high temperature material and compatibility with FR4 and aluminum clad boards.
The G13 Style SMT Assembly and End Cap Cover are designed for use on printed‑circuit‑board LED strip lighting modules that retrofit T8 and T12 fluorescent tubes. The assembly provides a high‑temperature, reflow‑compatible hold‑down for tube insertion and extraction, while the end‑cap cover interfaces with the assembly, heat sink, and tube.
Key features include a 0.5‑inch pin centerline per G13 specification, RoHS compliance, UL 94 VO‑rated thermoplastic material, and compatibility with FR‑4 and aluminum‑clad boards. The components are supplied unassembled (end‑cap) or tape‑and‑reel packaged for high‑speed SMT processing, and part numbers are provided for ordering.
| Operating Current | 2 AMPS |
|---|---|
| Operating Voltage | 250VAC/250VDC |
| Dielectric Withstanding Voltage | 1500VAC |
| Pin Centerline | 0.5 inch |
| Material Rating | UL 94 VO |
| RoHS Compliance | Yes |
The operating current is 2 AMPS.
Yes, the part numbers are RoHS compliant unless otherwise marked.
The pin centerline spacing is 0.5 inch per the G13 specification.
