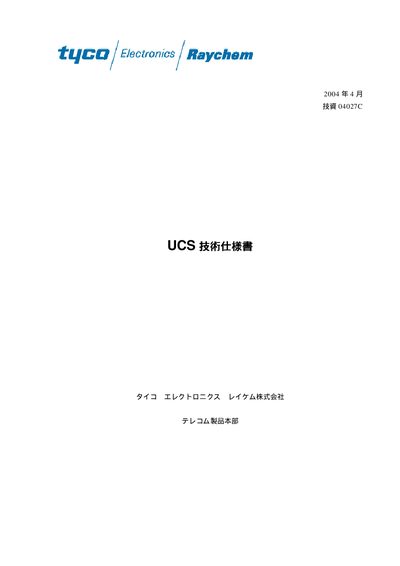

This is a technical specification for UCS, which details the use of UCS, design, construction, overview, characteristics, test items, quality management, etc.
This document provides a comprehensive technical description of the Tyco UCS (Universal Connection System) used in telephone terminal boards. It covers the system’s design, intended installation locations, and the IDC‑type connector approach that eliminates the need for soldering, screwing, or stripping.
The specification includes material choices, exact dimensions for 8‑pair and 10‑pair magazines, applicable wire sizes, mechanical and electrical test procedures, environmental resistance data, and quality‑management requirements. This manual is written in Japanese.
| 10‑pair magazine width | 21.36 mm |
|---|---|
| 10‑pair magazine length | 123.5 mm |
| 10‑pair magazine height | 39.42 mm |
| 8‑pair magazine width | 21.36 mm |
| 8‑pair magazine length | 104.60 mm |
| 8‑pair magazine height | 39.42 mm |
| Magazine body material | high‑environment‑resistance thermoplastic resin |
| Applicable single‑conductor wire size | 0.40 mm – 0.80 mm |
| Applicable outer‑diameter range | 0.69 mm – 1.40 mm |
| Insulation resistance (minimum) | ≥10¹¹ Ω |
| Contact resistance (maximum) | ≤ SmQ |
The 10‑pair magazine measures 21.36 mm in width, 123.5 mm in length, and 39.42 mm in height.
The magazine body is made of a high‑environment‑resistance thermoplastic resin.
