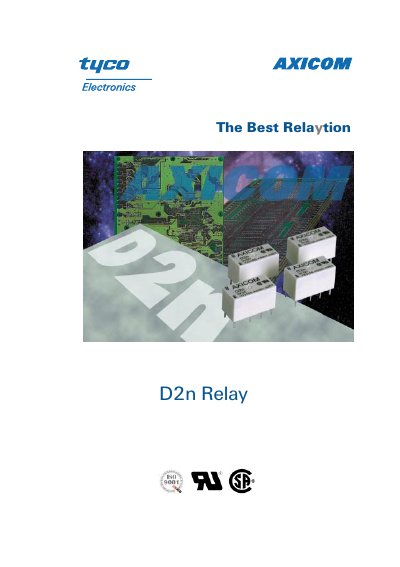

D2n Relay is a 2 pole telecom relay, non-polarized, Through Hole Type (THT) relay. It features a standard DIL relay with dimensions of 20.3 x 10.1 x 10.43 mm, switching and continuous current of 3A, 2 changeover contacts (2 form C / DPDT), single contacts, immersion cleanable, and four different coil sensitivities (150, 200, 400, > 500 mW). It is suitable for applications in communications equipment, office equipment, measurement and control equipment, entertainment electronics, medical equipment, and consumer electronics.
The D2n V23105 is a 2‑pole non‑polarized telecom relay with through‑hole mounting. It offers four coil power options (150 mW, 200 mW, 400 mW, > 500 mW) and can switch up to 3 A continuous current.
Typical applications include communications, office, measurement, entertainment, medical and consumer electronics. The datasheet lists detailed mechanical, electrical and environmental specifications as well as part numbers for ordering.
| Dimensions (L × W × H) | 20.3 × 10.1 × 10.43 mm |
|---|---|
| Maximum switching current | 3 A |
| Coil power options | 150 mW, 200 mW, 400 mW, > 500 mW |
| Surge voltage resistance | 1.5 kV (10 / 160 µs) per FCC Part 68 |
| Mechanical endurance (operations) | 15 × 10⁶ |
The relay can handle up to 3 A continuous current.
Four coil power levels are offered: 150 mW, 200 mW, 400 mW and greater than 500 mW.
It meets FCC Part 68 surge voltage resistance of 1.5 kV (10 / 160 µs).
The relay measures 20.3 mm × 10.1 mm × 10.43 mm.
