This is a product manual for PT series general purpose relays, which includes the relay's model, wiring method, voltage, current and other parameters.

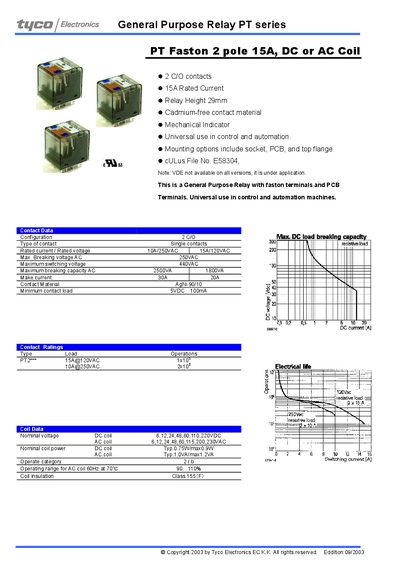

The Tyco PT series is a general‑purpose relay with Faston, PCB and flanged mounting options. It is designed for universal use in control and automation machines and offers cadmium‑free contacts, a mechanical indicator, and a 29 mm relay height.
The document provides detailed electrical data, coil options, mechanical dimensions, and accessory part numbers, along with certification information such as IEC insulation categories and IP20 protection.
| Rated Current | 15 A |
|---|---|
| Rated Voltage | 120 VAC |
| Relay Height | 29 mm |
| Contact Material | AgNi 90/10 |
| Coil Nominal Voltage (DC) | 6, 12, 24, 48, 60, 110, 220 VDC |
| Coil Nominal Voltage (AC) | 6, 12, 24, 48, 60, 115, 200, 230 VAC |
| Insulation Category | C/250 VAC |
| Protection Category | IP20 |
| Relay Weight | 30 g |
The PT series relay is rated for 15 A.
DC coil voltages are 6, 12, 24, 48, 60, 110 and 220 VDC; AC coil voltages are 6, 12, 24, 48, 60, 115, 200 and 230 VAC.
Mounting options include socket, PCB, and top‑flange configurations.
The DC‑coil version is rated for more than 20 × 10⁶ operations.
