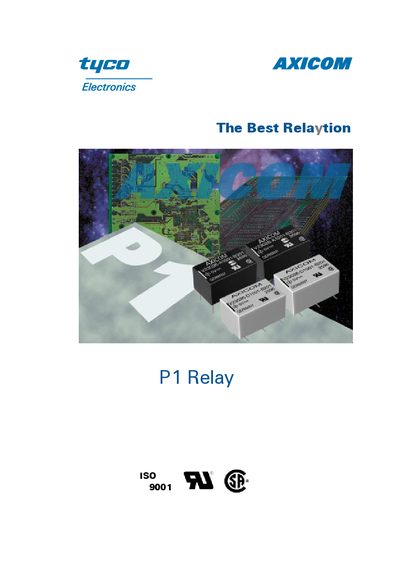

The document introduces the features and characteristics of P1 Relay. P1 Relay is an ISO 9001 1 pole telecom and signal relay, which can be installed through through-hole type or surface mount technology. The relay types include non-latching with 1 coil and latching with 2 coils or 1 coil. P1 Relay can be directly triggered with TTL standard modules such as ALS, HCT, and ACT. It has a slimline design with dimensions of 13.5 x 7.85 mm and a switching current of 1 A. The relay has 1 changeover contact (1 form C / SPDT) and bifurcated contacts. It is immersion cleanable and has high sensitivity resulting in low nominal power consumption. The surge voltage resistance between contact and coil meets the Bellcore Requirement GR-1089 and FCC Part 68. P1 Relay can be used in various applications including automotive equipment CAN bus, immobilizer, office equipment, measurement and control equipment, medical equipment, and safety equipment.
The P1 Relay V23026 is a slim‑line, polarized 1‑pole telecom and signal relay offered in both through‑hole (THT) and surface‑mount (SMT) versions. It is available as non‑latching or latching (1‑coil or 2‑coil) types and is designed for applications such as automotive equipment, office devices, measurement and control, medical and safety equipment.
Key features include a compact 13.5 × 7.85 mm footprint, 1 A switching current, low power consumption (65‑130 mW non‑latching, 30‑150 mW latching), IP67 immersion‑cleanable rating, and compliance with Bellcore GR‑1089 and FCC Part 68 surge‑voltage requirements. The sheet also provides detailed coil data, contact specifications, mechanical and environmental limits, and packaging options.
