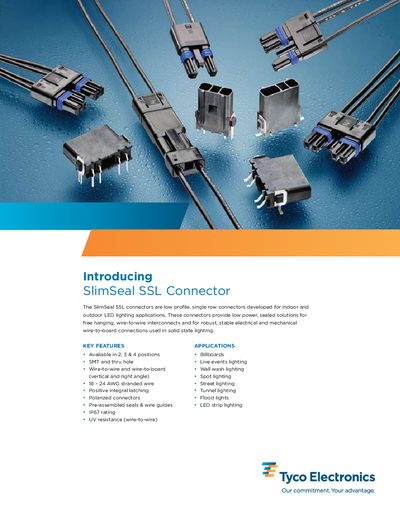

Introduces the SlimSeal SSL connector's features, applications and electrical and mechanical properties.
The SlimSeal SSL connectors are low‑profile, single‑row connectors designed for indoor and outdoor LED lighting applications. They offer sealed, low‑power wire‑to‑wire and wire‑to‑board connections with options for 2, 3, or 4 positions, SMT or thru‑hole mounting, and vertical or right‑angle orientations.
The brochure provides technical specifications such as operating current, voltage ratings, temperature range, and durability, as well as detailed mechanical dimensions for each header type. Part numbers, ordering information, and design‑related FAQs are included to assist engineers in selecting and integrating the connectors into their designs.
| Operating Current | 5 A (18‑20 AWG) & 3.5 A (22‑24 AWG) |
|---|---|
| Maximum Operating Voltage | 250 VAC / 250 VDC |
| Dielectric Withstanding Voltage | 1500 VAC |
| Number of Positions | 2, 3 and 4 |
| Operating Temperature | -40 °C to 105 °C |
| Seal Rating | IP67 |
| Durability | 30 mating cycles |
| Receptacle Contacts | Tin plated copper alloy |
| Tab Contacts | Tin plated brass |
| Integral Seals | Silicone rubber |
| Outdoor Exposure Rating | UL 746C Fl (wire‑to‑wire only) |
The connector accepts 18‑20 AWG and 22‑24 AWG stranded wire.
It features an integral, flush‑mounted actuated latch that is snag‑resistant and prevents inadvertent unmating.
Vertical and right‑angle SMT headers have surface‑mount hold‑downs, while vertical and right‑angle TH headers use board locks.
