HMC168C8 is a GaAs MMIC SMT double balanced mixer from Hittite Microwave Corporation, with a working frequency range of 4.5-8GHz.

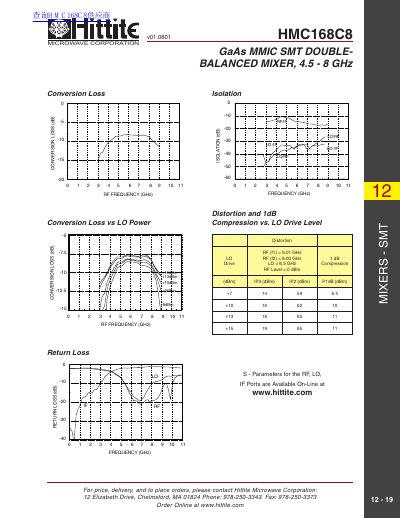

The document provides technical specifications for the HMC168C8 GaAs MMIC SMT double-balanced mixer, covering a frequency range of 4.5 to 8 GHz. It includes graphical data on conversion loss, isolation, return loss, distortion, and 1dB compression versus LO drive level.
| Product Type | GaAs MMIC SMT Double-Balanced Mixer |
|---|---|
| Frequency Range | 4.5 - 8 GHz |
| RF / IF Input Power (Max) | +13 dBm |
| LO Drive Power (Max) | +27 dBm |
| Storage Temperature Range | -65 to +150 °C |
| Operating Temperature Range | -55 to +85 °C |
The device operates as a double-balanced mixer in the 4.5 to 8 GHz range.
The absolute maximum rating for RF and IF input is +13 dBm.
