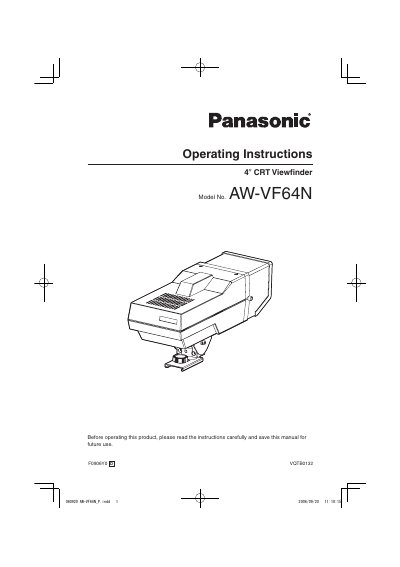

Panasonic AW-VF64N 4-inch CRT Viewfinder Operating Instructions

This document is the operating instructions for F0906Y0 D VQTB0132, describing the usage and safety precautions of the CRT viewfinder model AW-VF64N.

Brand: Panasonic
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 1.2 MB
Published: 09 August, 2012
Updated: 28 September, 2023
MD5 checksum: 394BB505052552A7ABDD6301240F5D6E
PDF: Panasonic AW-VF64N 4-inch CRT Viewfinder Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic AW-VF64N, a 4-inch black-and-white CRT viewfinder designed to be used with specific convertible cameras. The unit requires a studio SDI card or studio card to attach to compatible camera models such as the AW-E350 and AW-E750.

What's inside

Introduction
Safety precautions
Major operating controls
How to install
Specifications

Specifications

Display Type	4-inch black-and-white CRT
Video Input	1.0 V [P-P] composite/high impedance
Resolution	More than 500 lines
Power Requirements	DC 12V
Operating Temperature	+32°F to +104°F (0°C to +40°C)

Frequently asked questions

Which cameras is the AW-VF64N compatible with?

It is designed for convertible cameras such as the AW-E350, AW-E650, AW-E655, AW-E750 or AW-E860.

What cards are required for installation?

The studio SDI card (AW-PB506A) or studio card (AW-PB305A) is required to attach the unit.
