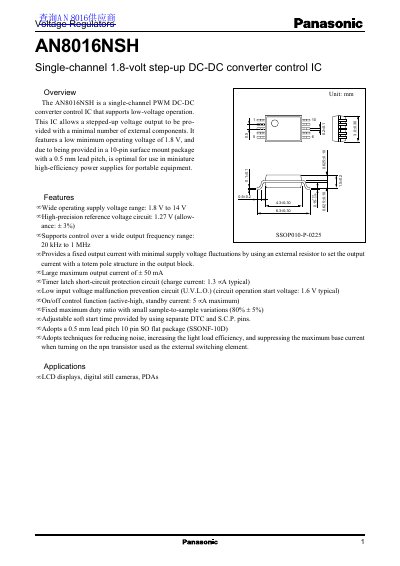

The AN8016NSH is a single-channel PWM DC-DC converter control IC that supports low-voltage operation. This IC allows a stepped-up voltage output to be provided with a minimal number of external components. It features a low minimum operating voltage of 1.8 V, and due to being provided in a 10-pin surface mount package with a 0.5 mm lead pitch, is optimal for use in miniature high-efficiency power supplies for portable equipment.
The AN8016NSH is a single-channel PWM DC-DC converter control IC designed for low-voltage operation, featuring a minimum operating voltage of 1.8 V. It is optimized for use in miniature high-efficiency power supplies for portable equipment due to its 10-pin surface mount package with a 0.5 mm lead pitch.
Key features include a wide operating supply voltage range of 1.8 V to 14 V, a high-precision reference voltage circuit of 1.27 V, and support for a wide output frequency range from 20 kHz to 1 MHz. The IC provides a fixed output current with minimal supply voltage fluctuations and includes protection circuits such as timer latch short-circuit protection and low input voltage malfunction prevention (U.V.L.O.).
| Supply voltage range | 1.8 V to 14 V |
|---|---|
| Reference voltage | 1.27 V |
| Maximum output current | + 50 mA |
| Package type | 10 pin SO flat package |
| Operating temperature | -30 to +85 °C |
The typical charge current is 1.3 A.
The standby current is a maximum of 5 µA.
