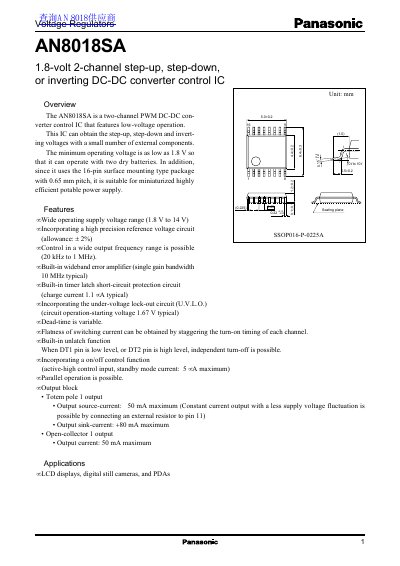

The AN8018SA is a two-channel PWM DC-DC converter control IC that features low-voltage operation.
The document describes the AN8018SA, a two-channel PWM DC-DC converter control IC designed for low-voltage operation starting at 1.8 V. It supports generating step-up, step-down, or inverting output voltages using a minimal number of external components.
Key features include a wide operating supply voltage range from 1.8 V to 14 V, built-in short-circuit protection with a timer latch, and an under-voltage lock-out (U.V.L.O.) circuit. The IC incorporates high-precision reference voltages and allows for parallel operation of the two channels.
| Supply Voltage Range | 1.8 V to 14 V |
|---|---|
| Minimum Operating Voltage | 1.8 V |
| Output Frequency Range | 20 kHz to 1 MHz |
| Reference Voltage Allowance | - 2% |
| Error Amplifier Bandwidth | 10 MHz typical |
| Package Type | SSOP-16 |
| Operating Ambient Temperature | -30 to +85 °C |
| Output Source Current (Max) | -50 mA |
| Output Sink Current (Max) | +80 mA |
The IC can operate with a minimum supply voltage of 1.8 V, allowing it to run on two dry batteries.
Yes, this IC can obtain step-up, step-down, and inverting voltages using a small number of external components.
The standby mode current is 5 mA maximum when using active-high control input.
