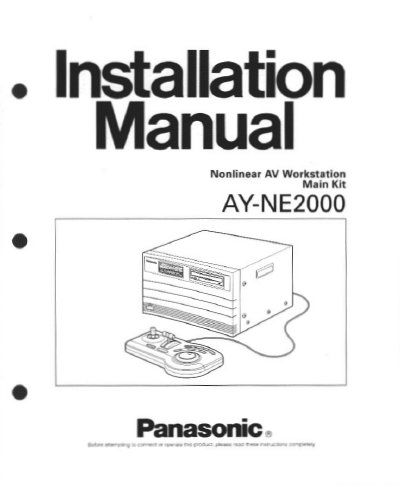

This manual covers the installation and operation of the Panasonic AY-NE2000 Nonlinear AV Workstation Main Kit. The device is a combination of powerful hardware and flexible software designed for professional post-production work, requiring the AY-AS2000 application software as a prerequisite.
The document details operating conditions, major controls on the front and rear panels, connection procedures for various peripherals like VCRs and monitors, and specific adjustment steps. It also includes safety precautions regarding power usage and environmental requirements.
| Input Power Source | 120V AC 60 Hz |
|---|---|
| Operating Temperature | 32°F ~ 95°F (0°C ~ +35°C) |
| Relative Humidity | 10 ~ 90% |
| Display Resolution | 1024 x 768 |
| Horizontal Scanning Frequency | 48 kHz |
| Vertical Scanning Frequency | 60 Hz |
The AY-AS2000 (Ver.4.1 or later) application software is prerequisite.
The unit should be used in an environment where the temperature is between 32°F and 95°F (0°C to +35°C).
Yes, there are dedicated Eject buttons for both the Floppy Disk and the ZIP Drive.
