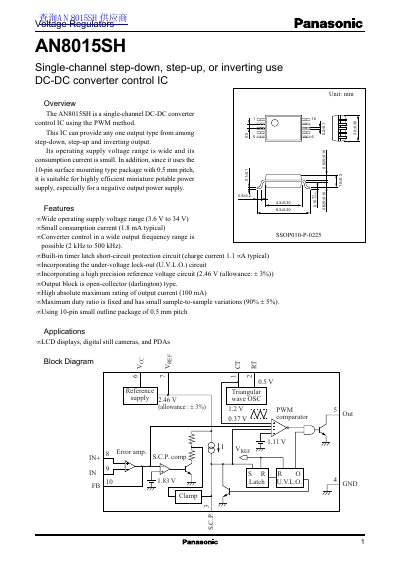

AN8015SH is a single-channel DC-DC converter control IC using the PWM method. This IC can provide any one output type from among step-down, step-up and inverting output. Its operating supply voltage range is wide and its consumption current is small. In addition, since it uses the 10-pin surface mounting type package with 0.5 mm pitch, it is suitable for highly efficient miniature potable power supply, especially for a negative output power supply.
The Panasonic AN8015SH is a single-channel DC-DC converter control IC that utilizes the PWM method. It is designed to provide one of three output types: step-down, step-up, or inverting. The device features a wide operating supply voltage range from 3.6 V to 34 V and includes built-in protections such as a timer latch short-circuit protection circuit and an under-voltage lock-out (U.V.L.O.) circuit.
| Operating supply voltage range | 3.6 V to 34 V |
|---|---|
| Typical consumption current | 1.8 mA |
| Reference voltage | 2.46 V |
| Maximum output current | 100 mA |
| Package type | 10-pin surface mounting type package with 0.5 mm pitch |
| Operating ambient temperature | -30 to +85 °C |
Yes, it incorporates a built-in timer latch short-circuit protection circuit.
The maximum duty ratio is fixed at 90% with small sample-to-sample variations.
