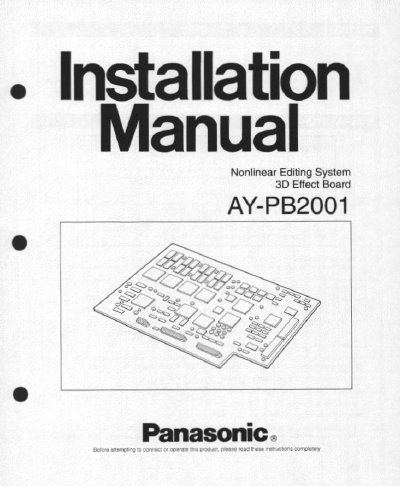

This manual provides installation procedures for the Panasonic AY-PB2001, a board designed to produce various three-dimensional video effects when installed inside the non-linear AV workstation main unit (AY-NE2000). The document details safety precautions regarding static electricity and power disconnection before handling the hardware.
| Power Supply | 5V DC |
|---|---|
| Dimensions (WxHxD) | 235 x 20 x 320 mm |
The board produces Page turn, roll turn, ball mapping, perspective, accordion, flaq, melt-down, Spark, ripple mix, split slide, after-image effect and lighting effect.
You must have your dealer install the board.
