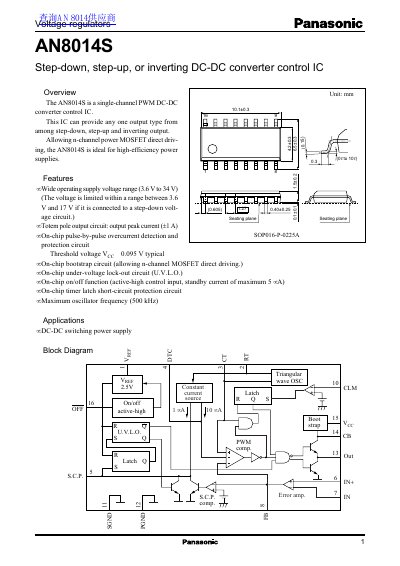

The AN8014S is a single-channel PWM DC-DC converter control IC that can provide any one output type from among step-down, step-up, and inverting output. It features a wide operating supply voltage range, output peak current, pulse-by-pulse overcurrent detection and protection circuit, and is ideal for high-efficiency power supplies.
The AN8014S is a single-channel PWM DC-DC converter control IC designed for high-efficiency power supplies. It allows direct driving of n-channel power MOSFETs and supports three output configurations: step-down, step-up, and inverting. Key features include a wide operating supply voltage range (3.6 V to 34 V), on-chip pulse-by-pulse overcurrent detection, and an on-chip bootstrap circuit.
| Supply voltage (Step-up) | 3.6 V to 34 V |
|---|---|
| Supply voltage (Step-down) | 3.6 V to 17 V |
| Operating ambient temperature | -30 to +85 °C |
| Reference voltage | 2.6 V |
| Maximum oscillator frequency | 500 kHz |
| Output peak current | -1 A |
| Standby current | 5 mA |
The IC can provide any one output type from among step-down, step-up and inverting output.
The operating supply voltage range is 3.6 V to 34 V, limited to 3.6 V to 17 V for step-down circuits.
Yes, it includes an on-chip pulse-by-pulse overcurrent detection and protection circuit.
