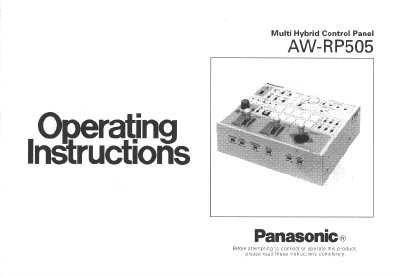

The Panasonic AW-RP505 Multi Hybrid Control Panel is designed to control up to five Pan/Tilt Heads and Color Video Cameras when connected to the Multiport Hub (AW-HB505). It supports various control functions including pan/tilt, lens zoom, focus, and iris operations, as well as sending and receiving video and genlock signals. The device allows for servo control at varying speeds and presetting up to 10 points per head.
The manual details the major operating controls, including power management, camera selection, mode switching between color bars and camera video, and white balance adjustments. It also covers installation procedures, rack mounting, and specific connection requirements for coaxial and Ethernet cables.
| Compatible Cameras | Pan/Tilt Heads (AW-PH300) and Color Video Cameras (AW-E560) |
|---|---|
| Max Cable Length to Hub | 10 meters |
| Max Cable Length to Devices | 500 meters |
| Preset Points | 10 points per head |
| Dimensions | 210 (W) x 88 (H) x 177 (D) mm |
| Weight | 2.2 kg (4.9 Ibs.) |
The maximum cable length from the control panel to the Multiport Hub is 10 meters.
No, the manual advises to avoid outdoor use of the control panel.
The unit must be used only with the AC Adaptor AW-PS301.
