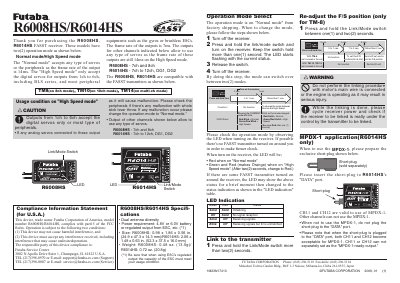

This document describes the usage conditions, specifications, and compatibility of the product. It states that outputs from 1ch to 6ch only accept digital servos, while other channels can use any type of servos. It also includes FCC compliance information and contact details.
The Futaba R6008HS and R6014HS receivers operate in two modes: Normal mode and High Speed mode. The Normal mode accepts any type of servos with a frame rate of 14ms. In contrast, the High Speed mode restricts outputs from channels 1 to 6 to digital servos only, operating at a 7ms frame rate, while other channels remain compatible with analog servos.
| Power requirement | 4.8V or 6.0V battery or regulated output from ESC, etc. |
|---|---|
| Size (R6008HS) | 0.98 x 1.86 x 0.56 in. |
Only digital servos are accepted for outputs from channel 1 to 6 in High Speed mode.
Channels 7 and 8 on the R6008HS, and channels 7 to 12 plus DG1, DG2 on the R6014HS allow any type of servo.
Turn off the receiver, press and hold the Link/Mode switch for more than one second while turning it on, then release.
