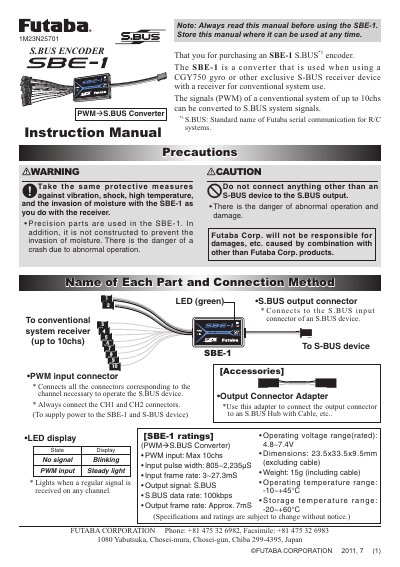

Instruction Manual of SBE-1 S.BUS ENCODER. It introduces the working principle of SBE-1, which can convert the signal of traditional system (PWM) to S.BUS system signal.
The Futaba SBE-1 is an S-BUS encoder designed to convert signals from a conventional system receiver (up to 10 channels) into S-BUS system signals. It is intended for use with a CGY750 gyro or other exclusive S-BUS receiver devices when paired with a conventional system receiver. The device allows for the integration of traditional control systems with modern S-BUS compatible equipment.
| Input Channels | up to 10chs |
|---|
The SBE-1 is a converter used when using a CGY750 gyro or other exclusive S-BUS receiver device with a receiver for conventional system use.
It can convert signals from a conventional system of up to 10 channels.
A steady green light indicates that a regular signal is being received on any channel.
A blinking LED indicates that there is no signal.
