This document is an operating instruction for the CF-51 series personal computers, which includes the names and functions of the port replicator components, as well as instructions for connecting and disconnecting. Additionally, the document contains a statement regarding radio frequency interference from the Federal Communications Commission in the USA.

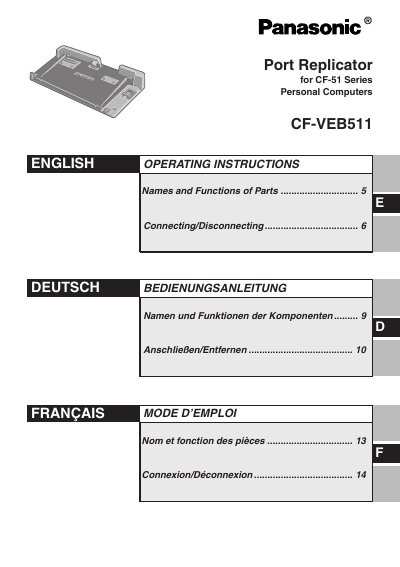

This document provides operating instructions for the Panasonic CF-VEB511 Port Replicator, a device intended exclusively for use with the Panasonic CF-51 Series notebook computers. The manual details the names and functions of the parts, including ports such as Parallel, Serial, Keyboard, Display, Security Lock, and DC IN.
| Power Supply Input | DC 15.6 V |
|---|---|
| Expansion Bus Connector | 100-pin |
| Physical Dimensions | 378mm x 64mm x 219mm |
| Weight | Approx. 1.3 kg |
No, using an interface cable longer than 3 m (9.84 feet) is not recommended.
No, it is impossible to remove the battery pack and the hard disk drive when the port replicator is attached.
No, this port replicator cannot be used for other models; it is specific to the CF-51 Series.
