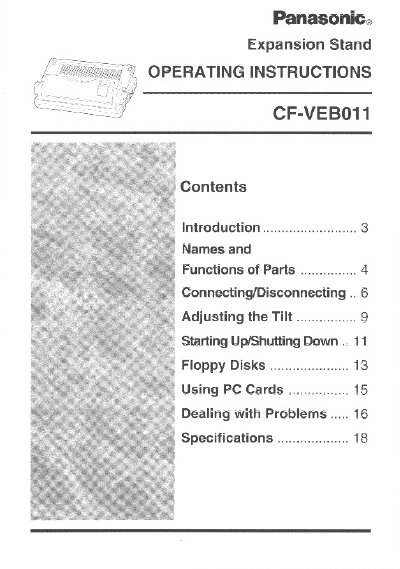

This manual provides operating instructions for the Panasonic CF-VEB011 Expansion Stand. It details the names and functions of the parts, including ports for keyboards, mice, displays, and PC Cards. The document also explains the proper procedures for connecting and disconnecting the computer to the stand to ensure safety and prevent damage.
| Floppy Disk Drive | 720 KB/1.44 MB (dual mode) |
|---|---|
| Card Slot | PC Cards only, One Type I or Type II |
| Allowable current | 5V: 300 mA, 12V: 50mA |
| Parallel Port | Dsub 25-pin male |
| Interface Serial Port | Dsub 9-pin male |
| Ext. Keyboard Port | Mini DIN 6-pin female |
| Ext. Mouse Port | Mini DIN 6-pin female |
| Ext. Display Port | Dsub 15-pin female |
| AC Adapter Output | DC 15.1V, 26A |
| Power Consumption | Approx. 24 W |
| Physical Dimensions | 218 mm X 71 mm X 152 mm |
| Weight | Approx. 900 g |
Yes, connecting is possible even while the computer is in suspend or hibernation mode or while its power is on, provided the battery has a sufficient charge.
Check the card orientation, ensure it is a specified card, verify the driver is installed, and check the I/O port address and IRQ number settings.
No, when the expansion stand is used, you should not use the serial port, ext. mouse/keyboard port, or DC-IN jack on the computer.
