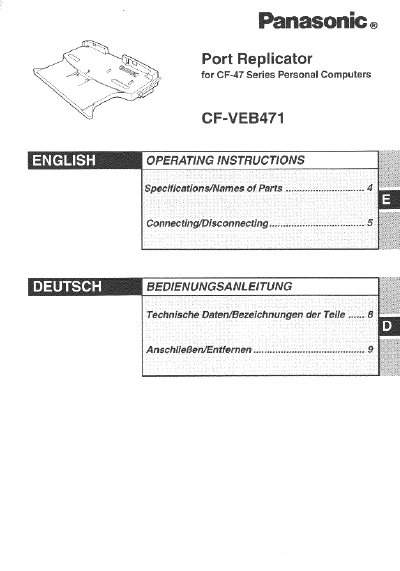

This document provides operating instructions for the Panasonic CF-VEB471 port replicator, which is an accessory for the CF-47 Series Personal Computers. The device allows users to connect peripheral devices such as keyboards and mice without needing multiple cables on the computer itself.
The manual details how to connect and disconnect the unit safely, emphasizing that the computer must be powered off before making connections. It also lists technical specifications including power requirements (DC 15.6 V), physical dimensions, and environmental operating conditions.
| Compatible Computer Series | CF-47 Series Personal Computers |
|---|---|
| Power Supply Input | DC 15.6 V |
| Expansion Bus Connector Type | 100-pin |
| Physical Dimensions (WxDxH) | 351 mm x 267 mm x 59 mm |
| Weight | Approx. 0.9 kg |
Use of an interface cable longer than 3 m (118.11 inch) is not recommended.
No, you must power off the computer and disconnect all cables before connecting or disconnecting the port replicator.
You must use the specified AC adapter, Model No.: CF-AA1639.
